Item: 25TIG1 A/B/C/D (Tire inflator gauge)

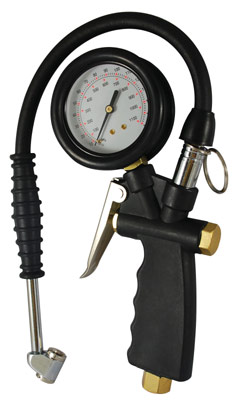

picture (image) of 25TIG1.jpg

  • Dial: 2.5''
  • Steel case and ring, acrylic window, Smooth black rubber boot, brass internal and connection
  • Large, easy-to-read 270o dial face ensures a precise pressure reading
  • Grip handle valve inflates or bleeds air to desired pressure, Flexible 360o swivel rubber hose
  • Range: 0-60 psi, 0-100 psi, 0-160 psi, available for bar, kg/cm2, kpa etc
  • Accuracy: 1.6%
  • 1/4" F-NPT inlet connection
  • End:  Heavy duty zinc alloy dual foot chuck  (25TIG1B)

Option:

  • Heavy duty zinc alloy dual foot chuck with hook  (25TIG1A)
  • Long rubber hose with clip on chuck  (25TIG1C)
  • Heavy duty extended length zinc alloy dual foot chuck (25TIG1D)

Suitable for any passenger vehicles, cars, truck, SUV, etc

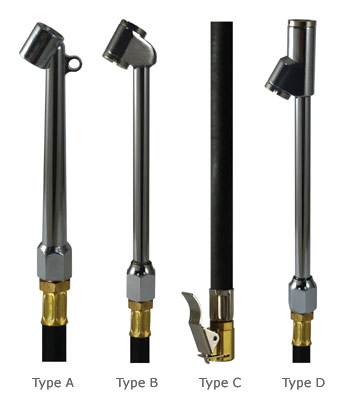

We supply 4 end chuck designs for all tire inflator gauges for option

  • Type A: Heavy duty zinc alloy dual foot chuck with hook
  • Type B: Heavy duty zinc alloy dual foot chuck
  • Type C: Long rubber hose with clip on chuck
  • Type D: Heavy duty extended length zinc alloy dual foot chuck


Download relative catalogues and other documents here.
